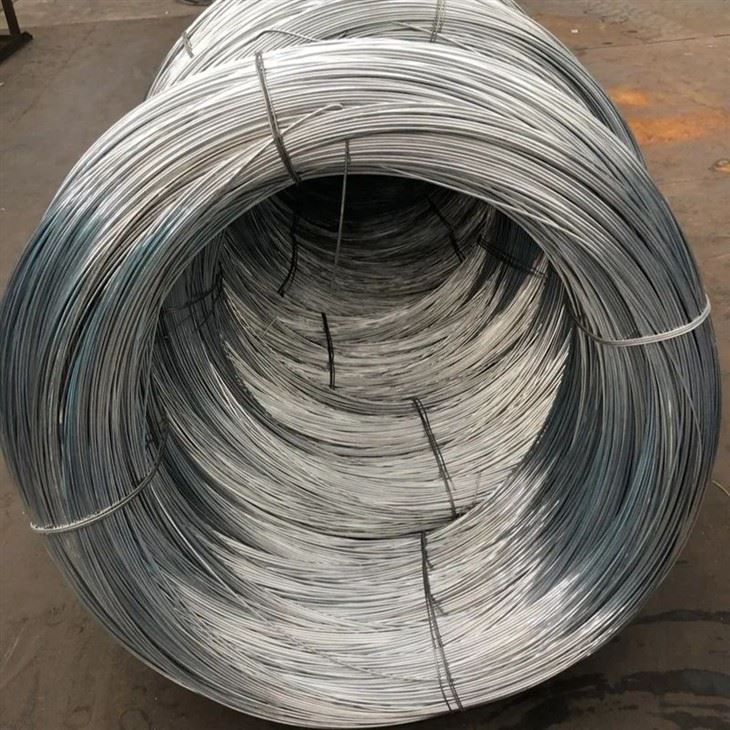

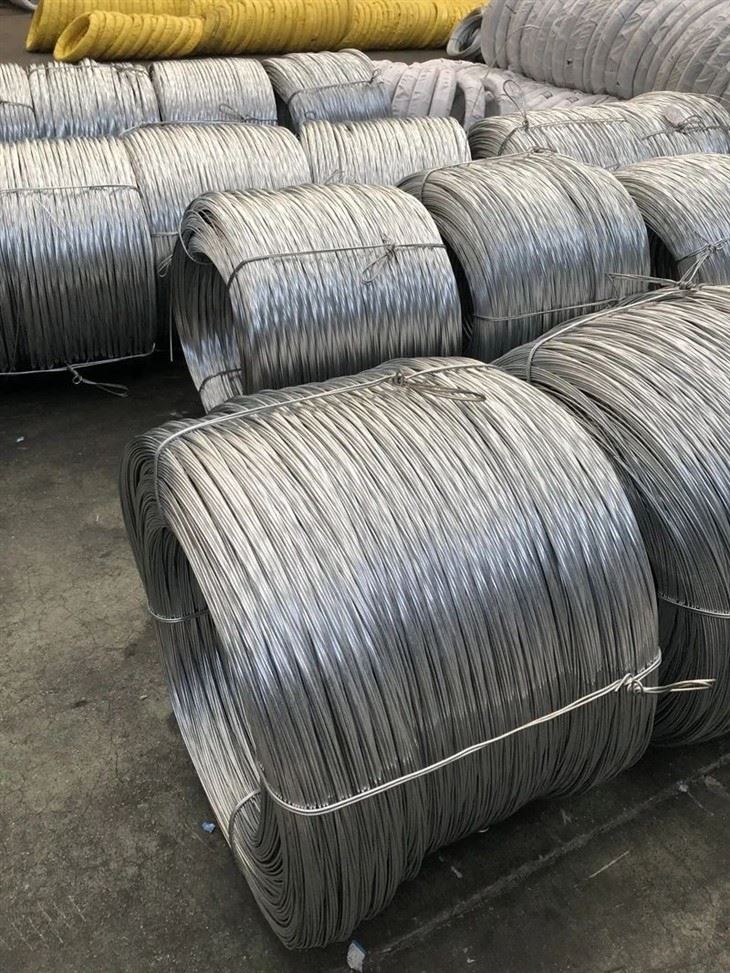

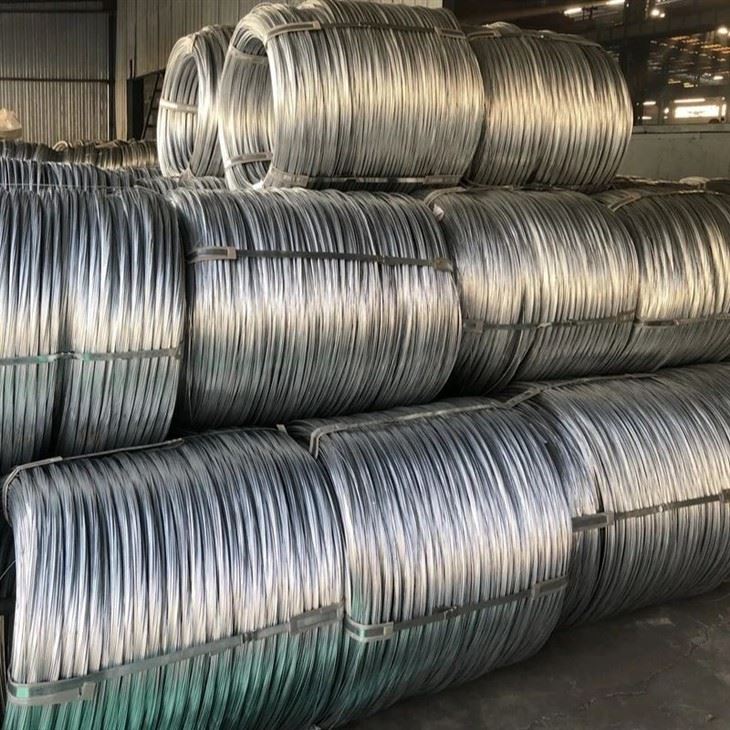

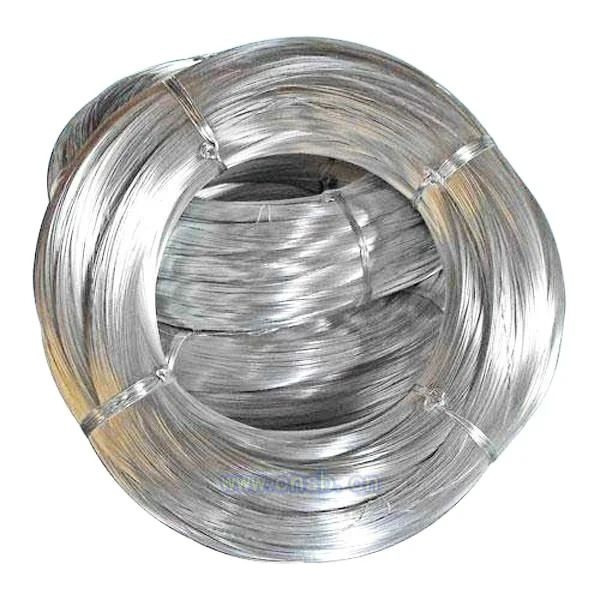

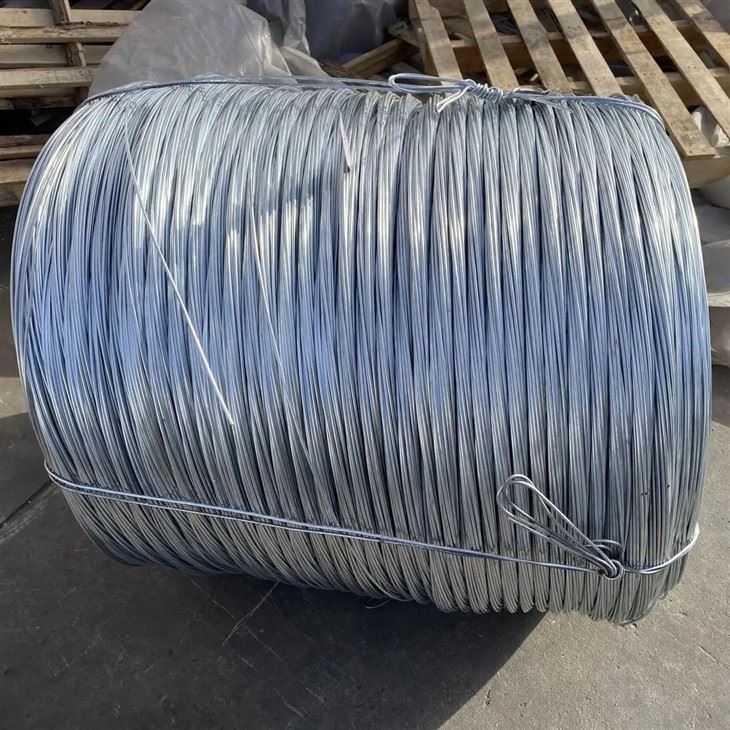

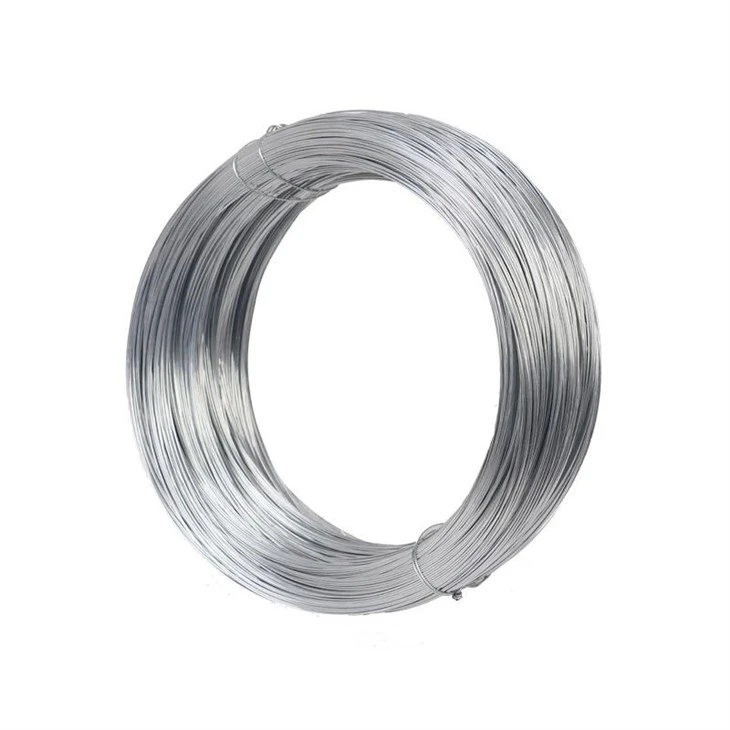

Product name	Galvanized Iron Wire
Size range	BWG8-BWG22
Function	Binding Wire
Processing Service	Decoiling
Material	Q195/Q235
Application	Building Material
Surface	Electro Galvanized
Color	Silvery
Packing	Woven Bag, Hessian cloth, Pallet or Custom
Tensile strength	350-550N/mm2
Certificate	ISO9001
Wire diameter	0.7mm--5.8mm
Coil weight	5kg --- 1000 Kg/coil

Wire Gauge	SWG(mm)	BWG(mm)	Metric(mm)
8	4.05	4.19	4
9	3.66	3.76	4
10	3.25	3.4	3.5
11	2.95	3.05	3
12	2.64	2.77	2.8
13	2.34	2.41	2.5
14	2.03	2.11	2.2
15	1.83	1.83	1.8
16	1.63	1.65	1.6
17	1.42	1.47	1.4
18	1.22	1.25	1.2
19	1.02	1.07	1
20	0.91	0.84	0.9
21	0.81	0.81	0.8
22	0.71	0.71	0.7

Zinc-Coated Iron Wire Production Process

Zinc-coated iron wire, also known as galvanized iron wire, is a popular product in the wire industry. It is used in various applications, such as construction and agriculture. The production process of zinc-coated iron wire involves several steps, which are outlined below:

Step 1: Raw Material Selection

The first step in the production process is the selection of high-quality raw materials. The raw material used for zinc-coated iron wire is low-carbon steel wire.

Step 2: Wire Drawing

The selected raw material is drawn through a wire drawing machine, which reduces the wire diameter to the desired thickness.

Step 3: Annealing

The wire is then subjected to an annealing process to improve its ductility and toughness. Annealing is done by heating the wire to a high temperature and then slowly cooling it.

Step 4: Galvanizing

In this step, the wire is passed through a hot-dip galvanizing production line. The galvanizing process involves immersing the wire in a bath of molten zinc. The zinc coating on the wire serves as a protective layer against corrosion and rust.

Step 5: Cooling and Drying

After the wire is galvanized, it is cooled and dried before it is rolled into wire coils.

Step 6: Wire Coiling

The final step in the production process is coiling the wire into spools or coils for shipment to customers.

Overall, the production process of zinc-coated iron wire involves several steps that require precision and expertise. With high-quality raw materials and well-maintained production equipment, manufacturers can produce zinc-coated iron wire that meets the needs and expectations of their customers.
